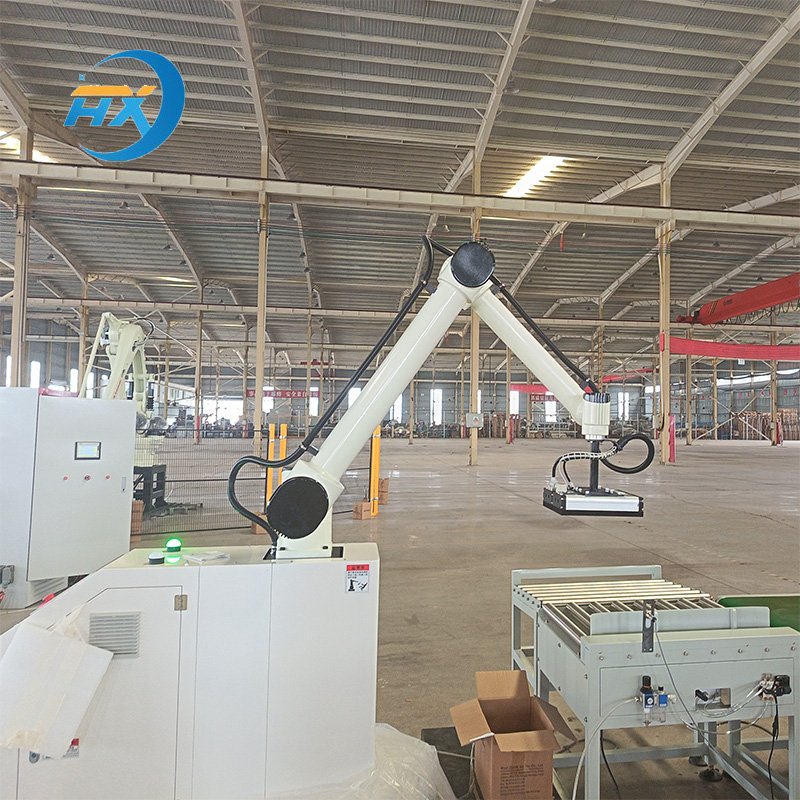

Product Name | CR20A Lifting Palletizing Workstation | CR10A Lifting Palletizing Workstation |
Max. Payload*1 | 20 kg | 10kg |
Max.Palletizing Speed*2 | Single-suction single-place: 9 cycles/min | Single-suction single-place: 9 cycles/min |
Double-suction single/double-place: 13 cycles/min | Double-suction single/double-place: 13 cycles/min |
Max. Palletizing Height | 2100 mm | 1800 mm |
Working Radius | 1700 mm | 1300 mm |
Footprint | 1350 mm*2220 mm | 1350 mm*2220 mm |
Total Weight | 300kg | 300kg |
Rated Voltage | AC 110/AC 230V 50/60Hz | AC110/AC 230V 50/60Hz |
Max. Current | 16A | 10A |
Typical Power Consumption | 3000W | 2000W |
Temperature Range | 10℃-50℃ |
|
Protection Rating | Robot body: IP54, Palletizing workstation: IP20 |
Certifications | EU:CE；US:FCC；CAN:ICES-003 |
Features:
1）High Payload and High Speed
The workstation has a maximum payload of 20 kg and a maximum palletizing height of 2,100 mm, easily meeting the palletizing demands of industries such as food, beverage, and pharmaceuticals. Equipped with the next-generation CR10A/20A collaborative robots, the palletizing speed reaches 8-13 cycles per minute, setting an industry-leading standard. Optional Ewellix 900 mm high-load lifting columns are available, with a maximum load capacity of 1,500 N, ensuring stable, reliable, and low-noise operation.
2）Strong Safety Performance
Supports virtual wall functionality, allowing users to freely set operational boundaries to ensure production safety. External safety devices such as safety lasers and safety light curtains can be easily integrated for multiple layers of protection. The product is certified under ISO 12100, EN 60204-1, ISO 10218-2, and ISO 13849-1, ensuring trustworthy safety.
3）Flexible Deployment
The workstation adopts a modular design, supporting plug-and-play for quick installation. It easily adapts to multi-variety production, eliminating the hassle of line changeovers.
4）Fast ROI
The collaborative palletizing workstation frees workers from repetitive and labor-intensive palletizing tasks, significantly reducing operational costs for low-value positions. The workstation is user-friendly, allowing even general workers to quickly master its operation, lowering subsequent maintenance costs. After deployment, the investment can typically be recouped in just 8-10 months.
5）30-Minute Quick Deployment
Equipped with a self-developed collaborative palletizing process package, no programming is required. Simply complete the 5-second setup, and the workstation is ready for production.
