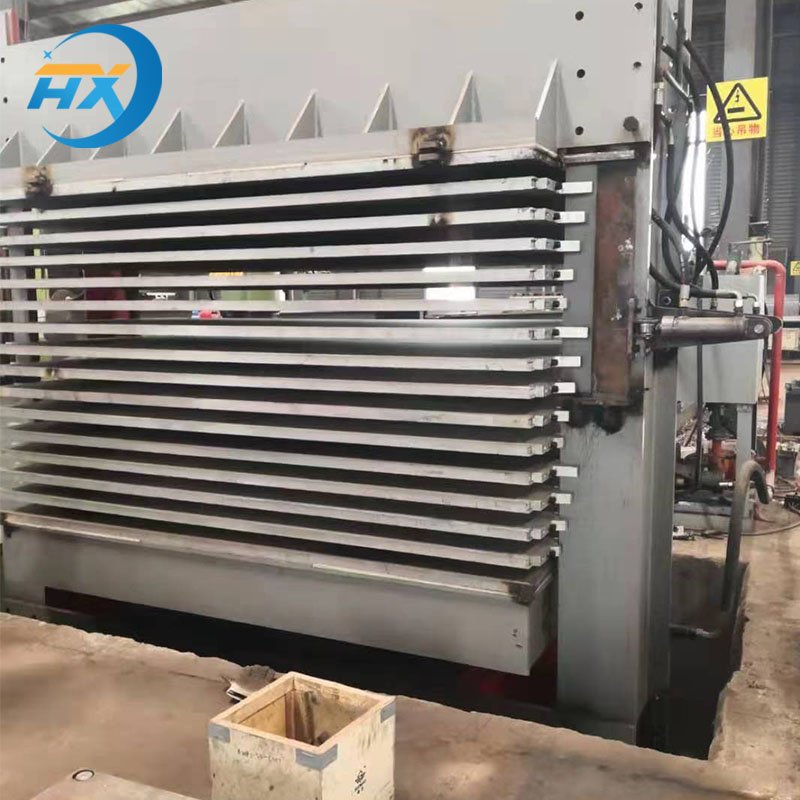

Hot Press machine

Other Name: Wood veneer plywood hot press machine

Min.Order Quantity: 1set

Port of Loading: Qingdao/Lianyungang,China

Payment Terms: T/T , L/C at sight.etc

Main Market: South-east Asia(Philippines,Malaysia,Indonesia,Vietnam),Africa countries, South America countries. etc

Product Details


Nominal pressure600 tons
Feeding directionhorizontal
Plate size2700mmx1370mmx42mm
Plate quantity16 PCS
Plate layers15 layers
Distance of plate70mm
Heating methodsThermal oil
Cylinder diameterΦ320 *1050mm*3 PCS
Cylinder originalWuxi
FrameOverall welded gantry(Disassembly)
Power26 kw
Overall dimension3550mm*1370mm*4650mm
Weight35000 kg

Can be customized by customer’s requirement

Such as 400mt , 500mt , 600mt, 800mt ,1000mt,1200mt  2500mt and so on

Other Related Machine

Spindless Veneer Peeling Machine | Veneer Composer MachineAutomatic Plywood Paving Line | Plywood Cold Press Machine

Packaging & Delivery

For woodworking machine packaging,usually packing in loose with steel wire rope reinforcement.

Delivery time:10-30days after receiving the deposit.


1). 1 year’s warranty and service lifetime

2). Strictly quality control and machine testing before loading

3). Support customization according to customer requirements

4). Support online technical guidance, training

5). Dispatching technical engineers to install, guide and debug equipment is available
